Medical Precision Machining: How Tight Tolerances Impact Medical Device Performance

Introduction

In medical device manufacturing, even a fraction of a millimeter can determine whether a device performs safely and effectively or leads to irreversible harm. At an implant-bone interface, a misfit of only a few microns can set off micro-movements that loosen the implant and erode surrounding bone over time. This is what makes tolerance, the permissible variation in a component’s dimensions, one of the most critical issues in precision machining.

This level of precision is in growing demand. The global medical device market reached $572 billion in 2025 and is projected to grow annually by 6.9% through 2034 (Fortune Business Insights, 2026). That growth is powered by the miniaturization of medical devices. They are becoming more and more complex and intricate, which significantly increases the demands placed on precision machining partners.

This article explores what tight tolerances mean in medical precision machining, why they are critical to device performance, and why over-tolerancing is a costly trap engineers and OEMs must avoid.

What Are Tight Tolerances in Medical Precision Machining?

Tolerance is the allowable limit of variation in a part’s physical dimensions relative to its nominal design. It measures how closely a manufactured part matches the intended size, geometry, and surface finish specified in the engineering drawing.

In precision machining for medical devices, tight tolerances typically reach ±0.025 mm (±0.001 inches). For specialized components, they can extend into the sub-micron range.

Tight tolerances encompass several interdependent parameters:

• Dimensional accuracy: exact allowable deviation in length, diameter, or depth,
• Geometric tolerances (GD&T): controls applied to form, orientation, and positional relationships,
• Surface finish (Ra): surface roughness specifications influencing friction, sterilization efficiency, wear behavior, and biocompatibility.

Medical precision machining demands consistency at scale, maintaining tight tolerances across thousands of production units. This, in addition to the specificity of each material, represents a significant challenge for medical device manufacturers.

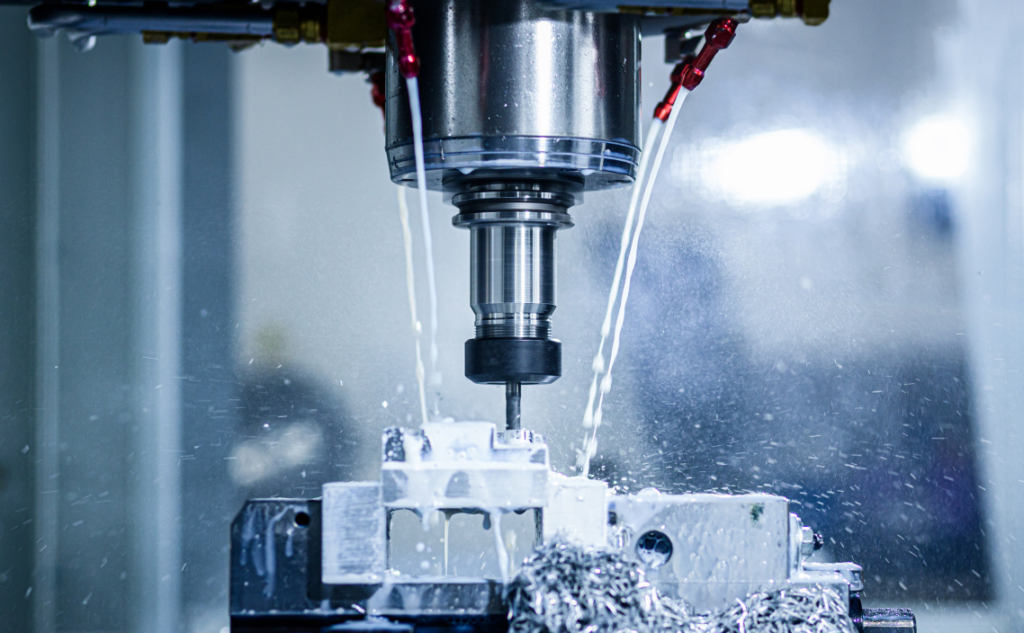

The machining technologies that make this possible include multi-axis CNC machining (5-axis and beyond), Swiss-type turning for miniature components, high-precision grinding, and EDM (Electrical Discharge Machining). Each requires rigorous process control and advanced metrology to verify results.

For more information on precision machining possibilities, consult our article on the role of CNC machining, laser techniques, and surface treatments in manufacturing orthopaedic and trauma implants.

Why Tight Tolerances Matter: The Core Impacts

Each tolerance specification directly affects a medical device’s ability to function safely, comply with regulatory requirements, and perform reliably over time.

Tolerance errors are among the most common issues in engineering and manufacturing. Their impact extends across several critical areas of device performance:

• Patient safety,
• Regulatory compliance,
• Device performance and reliability,
• Biocompatibility and sterilization,
• Manufacturing Consistency & Financial Impact.

Patient Safety

Patient safety is the most critical consequence of dimensional precision in medical device manufacturing. Even minor inaccuracies can lead to product failure and, depending on the device’s function, potentially catastrophic outcomes for patients.

For example:

• In implantable devices, a misfit of even a few microns can cause micro-movements at the implant-bone interface. Over time, this leads to bone erosion, implant loosening, or outright failure,
• In surgical instruments, dimensional deviations can affect grip, articulation, or cutting precision during a procedure,
• In drug delivery systems, minor misalignments in connectors or valves can cause incorrect dosing, with potentially severe consequences for patient safety.

Patient safety is the non-negotiable foundation for every tolerance specification in precision machining.

Regulatory Compliance

Medical devices are among the most heavily regulated products in the world. In addition to being a quality preference, tight tolerances are also a regulatory requirement.

Key regulatory frameworks governing dimensional control include:

• ISO 13485: the international quality management standard for medical device manufacturers. It requires documented control of all production processes, including dimensional tolerances,
• FDA 21 CFR Part 820 (Quality System Regulation): the US federal regulation governing quality systems for medical device manufacturers. It requires design validation and verification, including documented confirmation that manufactured parts meet design specifications,
• EU MDR (Medical Device Regulation 2017/745): the European regulatory framework governing the safety and performance of medical devices placed on the EU market. It requires enhanced technical documentation, clinical evaluation, and full traceability of manufacturing parameters.

These frameworks require that every non-conformance be documented, investigated, and corrected. Recurrent non-conformances can trigger audits, corrective action requests, or in severe cases, supplier relationships and market withdrawal.

At Acrotec Medtech, full traceability and dimensional documentation are built into every production workflow. Learn more about our Quality, Certifications and Traceability.

Device Performance & Reliability

Clinical and Functional Performance

Precision manufacturing with tight tolerances directly determines whether a medical device performs as intended throughout its entire life cycle.

Examples include:

• In orthopedic implants, load distribution across a joint depends on exact contact geometry. A deviation of a few microns changes the stress concentration pattern, accelerating wear and fatigue failure.
• For reusable surgical instruments, precise tolerances ensure correct articulation, smooth operation, and resistance to deformation after repeated sterilization cycles.
• In drug delivery or diagnostic systems, dimensional inaccuracies can compromise flow control, sealing, or measurement precision.

Assembly Integrity and System Reliability

Beyond individual component dimensions, medical device performance also depends on how parts interact once assembled. In multi-component systems, tight tolerances at each interface help prevent cumulative misalignment, mechanical instability, and functional failure.

For example, poorly fitted components in diagnostic imaging equipment may generate inaccurate readings due to mechanical imprecision, while misaligned assemblies in implant systems can lead to premature wear or instability.

GD&T as a Tool for Functional Precision

Because tight tolerances affect assembly and functional reliability so strongly, manufacturers rely on Geometric Dimensioning and Tolerancing (GD&T) to control these relationships accurately.

Unlike conventional dimensional tolerancing, GD&T controls the geometric relationships between features – including position, flatness, concentricity, and perpendicularity – to ensure components function correctly as a complete system.

By defining how parts must align and interact in assembly conditions, GD&T helps manufacturers:

• Improve assembly consistency,
• Reduce tolerance stack-up issues,
• Align specifications with real manufacturing capability, and
• Avoid unnecessary over-tolerancing.

Research published in the CAD Journal shows that GD&T-based tolerance specifications can significantly reduce assembly issues and improve functional consistency compared to conventional numeric tolerancing methods.

Biocompatibility & Sterilization

Tight tolerances in medical device manufacturing extend beyond dimensional accuracy alone. Surface finish tolerances – commonly specified through Ra values (average surface roughness) – are equally critical because they directly influence biocompatibility and tissue interaction.

Even when a component meets its dimensional specifications, insufficient control of surface roughness can compromise the biological performance of the device.

For example:

• Excessively rough surfaces can create microscopic crevices where bacteria accumulate and biofilms develop, increasing contamination and infection risks despite sterilization procedures,
• In implantable devices, surface irregularities may impair osseointegration, weakening the biological bonding between bone and implant and affecting long-term fixation stability.
• In fluid management and drug delivery systems, poorly controlled surface finishes can alter flow behavior, sealing performance, and particle generation.

This is why surface finish tolerances are tightly controlled in medical precision machining environments.

Standards such as ISO 10993 establish the framework for biocompatibility evaluation, but achieving compliance also depends on maintaining suitable surface integrity throughout the manufacturing process.

Manufacturing Consistency & Financial Impact

The Cost of Poor Tolerance Control

Tight tolerances have a direct impact on manufacturing consistency and production economics. When critical tolerances drift outside specification, the consequences extend far beyond dimensional nonconformity:

• Disrupted assembly processes,
• Higher scrap rates and warranty claims,
• Costly rework,
• Regulatory scrutiny.

These effects may ultimately lead to product failures or recalls.

Additionally, the financial consequences can escalate rapidly.

For example:

• A single recall process can cost a manufacturer up to $600 million, excluding lawsuit costs (according to McKinsey),
• Medical device recalls generate up to $5 billion in costs every year (according to Honeywell/Sparta Systems),
• Manufacturers face an average 10% drop in share price following a major recall event, with recovery timelines ranging from 2 to 5 years (according to Honeywell/Sparta Systems).

Manufacturing Consistency as a Competitive Advantage

Conversely, components manufactured within tightly controlled tolerances integrate more reliably into assemblies, improving production yield, reducing process variability, minimizing field failures, and lowering service and warranty costs.

This consistency becomes a major competitive advantage rather than simply a quality requirement, especially in the medical device industry.

For more information on challenges that affect manufacturing lead times, consult our article on How to Reduce Lead Times in Medical Device Manufacturing.

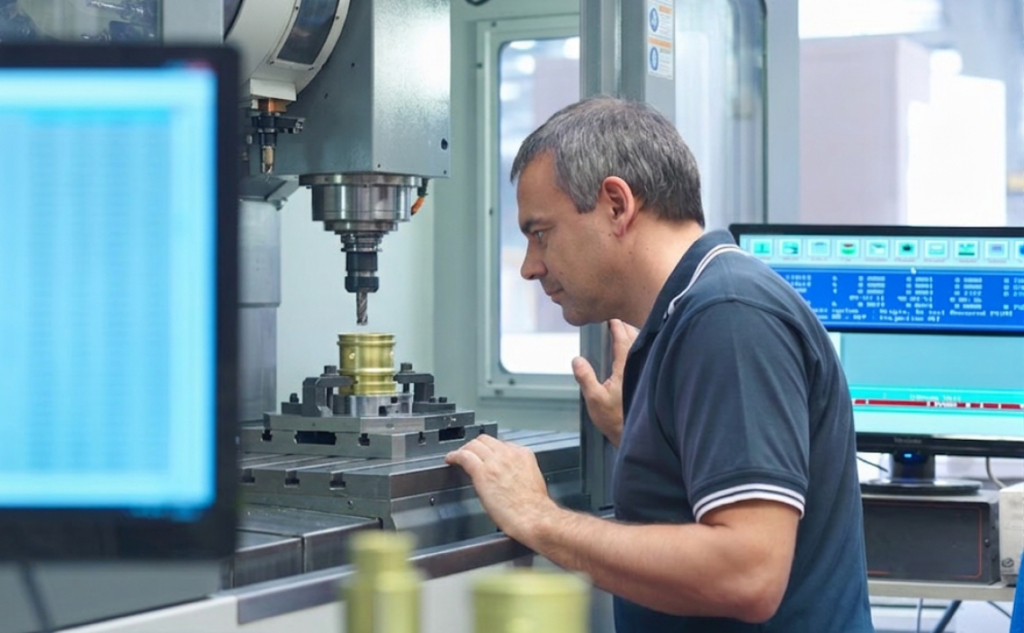

Advanced Metrology and Process Control

Achieving dimensional consistency at scale requires more than precision machining alone.

Medical device manufacturers rely on advanced metrology and process control systems to verify tight tolerances throughout production rather than only during final inspection.

Technologies such as Coordinate Measuring Machines (CMMs), optical vision systems, and profilometers are integrated directly into manufacturing workflows to monitor dimensional accuracy and surface integrity in real time.

This continuous verification process helps manufacturers:

• Maintain process stability,
• Detect deviations earlier, and
• Ensure repeatable quality across complex medical components.

The Other Side of Precision: The Risks of Over-Tolerancing

While tighter tolerances generally contribute to more safe and reliable products, they can also become counterproductive when unnecessarily specified beyond functional requirements.

Over-tolerancing means specifying tighter dimensional limits than the function of the component actually requires. The problem is widespread. Industry data suggests that only a percentage of features in a typical medical device design genuinely require tolerances of ±0.01 mm or tighter.

The Consequences of Over-Tolerancing

When engineers apply that level of precision across all features, manufacturing costs can increase significantly without any meaningful gain in device safety or performance.

The consequences of excessively tight tolerances are concrete:

• Longer machining cycle times: tighter dimensional control requires slower feed rates, more setups, and finer tool paths,
• Higher scrap rates: ultra-tight tolerances produce more rejected parts, even when the process is running well,
• Increased inspection burden: advanced metrology tools are required to verify sub-micron specifications, adding time and cost to every batch,
• Delayed time-to-market: over-specified drawings often trigger late design revisions when manufacturing partners flag unachievable combinations of tolerances,
• Lower process consistency: paradoxically, pushing machining processes beyond their most stable operating window.

A Function-Driven Approach to Tolerancing

Avoiding over-tolerancing requires a function-driven approach to specification and manufacturability:

• Base tolerances on true functional need: tighten only where exact fit directly affects performance or safety,
• Use GD&T over linear tolerances: it is more meaningful for assembly performance.
• Perform tolerance stack-up analysis early: cumulative tolerances across an assembly can create interference or gaps that no single tight tolerance can prevent,
• Match tolerances to material behavior: for example, titanium and PEEK respond differently to heat and machining stress. Tolerance ranges must account for material-specific dimensional variations,
• Design For Manufacturability (DFM): OEMs and their manufacturing partners need to collaborate early. The best tolerance is the one that meets functional requirements and is reliably achievable at production volumes.

Because of these downstream consequences, tolerance strategy cannot be treated as a late-stage adjustment. Late tolerance changes frequently trigger re-validation cycles, production line adjustments, and supply chain disruptions – all of which extend lead times and increase costs. Tolerance strategy is a design-phase decision, not an afterthought.

The goal is optimal tolerancing: tight where it matters, relaxed where it does not. This is the engineering discipline that separates high-performance medical devices from over-engineered, over-budget ones.

Conclusion

Dimensional precision is foundational to reliable medical devices. Poor tolerance management is not simply a quality issue. It can create a business risk and, ultimately, a human one.

However, precision must be applied strategically. Over-tolerancing increases manufacturing complexity without improving safety or performance. The objective is not maximum precision everywhere, but function-driven tolerance optimization.

Achieving that balance requires close collaboration between engineering, manufacturing, and metrology teams from the earliest design stages onward.

At Acrotec Medtech, this engineering-driven approach shapes both machining operations and tolerance strategy development for complex medical components and assemblies. From early design review to final inspection, dimensional control is treated not as an isolated specification, but as a critical contributor to device reliability and manufacturability.

Whether you are developing a new implant, scaling a surgical instrument, or refining a diagnostic component, contact us to discuss your precision machining and tolerance strategy requirements.
