Medical Device Manufacturing: From Prototype to Scalable Production

How do OEMs and contract manufacturers work together in medical device production?

A medical device rarely originates and is produced by the same organization. Its value chain relies on close collaboration between two key players:

OEMs bring the design intent, clinical requirements, and regulatory ownership; contract manufacturers bring the process expertise, equipment, and quality systems needed to turn that design into a physical device, repeatedly and at volume.

This division of labor is what enables the medical device industry to operate at the scale and precision it demands today.

The importance of the OEM-manufacturer relationship becomes especially apparent during key transition phases, such as moving from prototype to pilot production or from pilot to full-scale manufacturing. A contract manufacturer engaged only after these transitions often inherits issues that could have been prevented through earlier collaboration, whereas one involved from the design stage can help an OEM anticipate and address them.

Together, these interactions form the foundation of the medical device manufacturing process, in which design, industrialization, quality assurance, and regulatory requirements must remain aligned throughout the product lifecycle.

This whitepaper explores medical device manufacturing, examining its value chain from prototype to full-scale production, its key applications, and the manufacturing challenges that shape device performance and regulatory success.

What Is Medical Device Manufacturing?

Medical device manufacturing is the set of engineering and production processes that transform a validated design into a physical device ready for clinical or diagnostic use. It spans everything from initial design feasibility and material selection through machining, assembly, sterilization, and final packaging.

Unlike general industrial manufacturing, medical device production operates within regulated quality management systems. Relevant requirements may include ISO 13485, the FDA Quality Management System Regulation (QMSR), codified in 21 CFR Part 820, and the EU Medical Device Regulation (EU MDR). Depending on the device, market, and manufacturer’s responsibilities, applicable design, production, inspection, and traceability records must be controlled and retained for the periods required by the relevant regulatory framework.

For OEMs, this means medical device manufacturing is inseparable from quality and regulatory management. Choosing how and where a device is manufactured is as much a compliance decision as an operational one.

Medical device manufacturing is an iterative rather than a linear process. Activities such as feasibility assessment, sourcing, machining, assembly, and sterilization are closely interconnected, with decisions made at one stage often affecting those that precede or follow.

Consequently, a late design change can trigger revalidation across multiple stages of development and manufacturing.

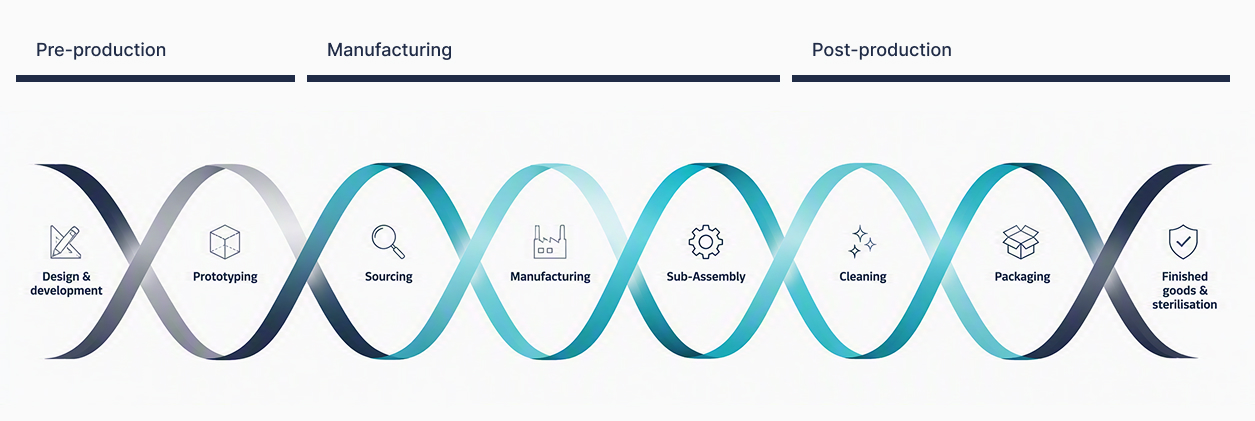

What Are the Steps from Prototype to Full-Scale Production?

Moving a device from an early concept to full-volume production follows a broadly consistent sequence, even though the pace and depth of each stage vary by device class and risk.

Design and Development

The earliest stage has the greatest influence on manufacturing success. Incorporating Design for Manufacturability (DFM) expertise before a design is finalized helps ensure that a device can be produced consistently, efficiently, and at scale.

What appears straightforward on a CAD drawing may, in practice, require specialized tooling, additional machining operations, or tolerances that are difficult to maintain in production. Engaging a contract manufacturer during DFM allows potential production issues to be identified while they are still easy to address.

Identifying these constraints early allows design and manufacturing teams to refine the product before costly investments are made. Once tooling, fixtures, and production processes are in place, implementing the same changes becomes significantly more complex, time-consuming, and expensive.

Prototyping

Prototyping validates form, fit, and function on a small number of units, often using processes representative of eventual production. This is also where GD&T and dimensional requirements are first stress-tested against real manufacturing capability, rather than only theoretical drawings.

Prototyping is the last point where a design change costs relatively little, which makes thorough iteration here one of the more cost-effective investments in the entire program.

Sourcing

Material selection sits at the foundation of every medical device, directly influencing its:

• Mechanical performance,
• Biocompatibility,
• Corrosion resistance,
• Sterilization compatibility, and
• Long-term durability.

Because each material responds differently to machining, sterilization, and clinical use, sourcing decisions must be aligned with both the intended application and the manufacturing process.

Common materials include:

• Metals, valued for their strength, wear resistance, and fatigue performance:
  • Stainless steel, titanium, and cobalt-chromium for general structural and load-bearing applications.
  • Nitinol, prized instead for its superelasticity and shape-memory behavior, commonly used in stents and guidewires.
• High-performance polymers, selected for their light weight, chemical resistance, or flexibility: PEEK, PTFE, UHMWPE, and silicone.
• Advanced ceramics, used where exceptional hardness, wear resistance, and biocompatibility are required.

For a more detailed discussion of material properties, selection criteria, and application-specific considerations, see Acrotec Medtech’s article Choosing the Right Materials for Your Medical Device.

Manufacturing

Once materials have been selected and validated, production moves into manufacturing. The processes used vary depending on the device’s geometry, material, intended application, and regulatory requirements. They all share the same objective: producing components with exceptional precision, repeatability, and traceability.

Core manufacturing technologies include:

• CNC turning and milling for high-precision metal components,
• Electrical Discharge Machining (EDM) for intricate conductive parts,
• Laser cutting, Marking, and Micro-welding for fine features and permanent identification,
• Micro-machining for miniature components with micron-level tolerances, and
• Surface treatments to improve wear resistance, corrosion protection, biocompatibility, or osseointegration.

Many of these technologies require dedicated expertise and equipment.

At this stage, process capability, commonly measured through Cpk, becomes the relevant metric: it quantifies whether a manufacturing process can consistently hold its required tolerances at production volume, not just in a small, controlled batch.

Metrology is integrated directly into this stage rather than reserved for a final check. Coordinate Measuring Machines (CMMs), optical vision systems, and profilometers monitor dimensional accuracy and surface finish throughout production, catching drift before it produces non-conforming parts.

Manufacturing at scale also introduces decisions that did not arise during prototyping or pilot runs, whether to automate loading and inspection, for instance, or how many production cells to run in parallel.

These decisions balance volume, part complexity, and cost, and they are typically informed by the process capability data gathered during earlier, smaller-batch production.

Subassembly

The output of manufacturing is rarely a finished medical device. Instead, precision-machined components progress to sub-assembly, where they are combined, inspected, and prepared for integration into the final product.

Sub-assembly processes include mechanical fastening, welding, or bonding.

The quality of these assembly operations is just as critical as the quality of the components themselves, as dimensional errors or contamination introduced at this stage can compromise device performance.

For complex devices, such as multi-component surgical instruments or drug delivery systems, sub-assembly is often where functional testing first becomes possible, verifying that the parts work correctly together rather than only in isolation.

Post-Production

Once a device is machined and assembled, several further steps are required before it can reach a patient or clinician, each with its own validation requirements.

Cleaning

Precision-machined components carry residues from the machining process itself, cutting fluids, metal particulates, or handling contaminants that have to be removed before further processing.

Cleaning validation confirms that a defined cleaning process consistently reduces these residues to an acceptable, documented level, since incomplete cleaning can compromise both sterilization efficacy and biocompatibility.

Packaging

Packaging has to maintain sterile barrier integrity through the distribution conditions a device will actually encounter, including temperature variation, handling, and shelf life.

Any change to a packaging configuration, or to the device or process it protects, typically requires the packaging validation to be revisited, since sterile barrier performance is tested against a specific, documented set of conditions.

Finished Goods and Sterilization

The final stage confirms the device meets its complete specification and, where required, undergoes sterilization, whether by ethylene oxide, gamma irradiation, or steam.

Sterilization validation is method- and product-specific: a process proven effective for one device cannot be assumed to carry over automatically to another.

This is also where traceability converges: distribution records have to preserve the link between a specific finished device, its production lot, material certificates, and inspection data.

Which medical devices rely on precision manufacturing?

Precision-manufactured medical devices support a wide range of clinical and diagnostic applications, each with its own tolerance, material, and regulatory demands:

• Orthopedic implants, including trauma, spine, dental, and foot and ankle implants, where load-bearing performance and long-term biocompatibility are critical,
• Cardiovascular implants and instruments, often requiring micro-machining of small, complex geometries in biocompatible metals,
• Ophthalmic and ENT equipment, where miniaturization and surface finish directly affect device performance,
• Surgical instruments, both single-use and reusable, where dimensional consistency affects grip, articulation, and repeated sterilization tolerance,
• Robotic-assisted surgery systems, which depend on tightly toleranced components for precise, repeatable mechanical motion.

• Diagnostic and life sciences components, including parts for in vitro diagnostics (IVD) systems, where dimensional precision affects measurement accuracy and fluid handling.

Across all of these applications, the underlying manufacturing path, design, prototyping, sourcing, manufacturing, assembly, and post-production, remains broadly the same, even as the specific tolerances, materials, and validation requirements differ by device.

What are the biggest challenges in medical device manufacturing?

Medical device manufacturing presents a series of technical, regulatory, and operational challenges throughout the product lifecycle. While their nature varies depending on the device and production scale, the following considerations consistently influence product quality, manufacturing efficiency, and time to market:

Regulatory compliance

Frameworks such as ISO 13485, FDA 21 CFR Part 820, and EU MDR require documented control over design, materials, and process changes at every stage, and non-conformances can trigger audits or delay a program significantly.

Complex Geometries

Increasingly intricate implant and instrument designs require advanced machining strategies and equally sophisticated inspection methods to verify dimensional accuracy.

Material Variability

Metals, polymers, ceramics, and emerging biomaterials each respond differently to machining, cleaning, sterilization, and inspection, requiring process parameters tailored to each material.

Miniaturization

As medical devices continue to shrink, manufacturing, assembly, and inspection become increasingly demanding, with micron-level tolerances and complex micro-features becoming commonplace.

Tight tolerances

Dimensional and geometric tolerances directly affect patient safety, device performance, and regulatory compliance, and holding them consistently at volume, rather than only in a controlled batch, remains one of the most persistent technical challenges in the industry.

High-Volume Production

Scaling from prototype to serial production while maintaining consistent quality, tight tolerances, and process capability remains a significant manufacturing challenge.

Traceability

Maintaining traceable measurement data throughout the production process is essential for regulatory compliance and quality control.

Lead times

Supplier handoffs, material sourcing, and validation cycles all contribute to the overall time it takes to bring a device to market, and delays at any single stage tend to compound rather than average out.

These challenges are rarely isolated from one another. A miniaturized component, for instance, is also likely to carry tighter tolerances and a longer validation cycle, which is why they are best addressed together, early in a program, rather than as separate problems to solve as they arise.

What does it take to manufacture medical devices at scale?

As medical devices continue to become smaller, smarter, and more personalized, manufacturing will play an increasingly strategic role. Success will depend not only on precision machining, but on the ability to industrialize complex designs while maintaining quality, traceability, and regulatory compliance at scale.

Achieving this requires close collaboration between OEMs and manufacturing partners throughout the product lifecycle. The organizations best positioned to support future medical innovations will be those capable of combining engineering expertise, robust quality systems, and scalable manufacturing processes.
