As medical technology advances, the demand for smaller, more precise and minimally invasive medical devices continues to grow.
This is where miniaturization comes into play. It refers to reducing the size of medical device components without compromising their quality, precision and functionality.
Together with digitalization, miniaturization has been shaping the future of medical devices. Smarter, implantable, and wearable, they are helping to enhance patient care and comfort while reducing in-hospital time.
This article explores how miniaturization is transforming the future of MedTech, from historical breakthroughs to the cutting-edge manufacturing techniques driving today’s innovations. Discover the challenges OEMs and contract manufacturers face, the micro manufacturing processes enabling next-generation components, and how technologies like AI, IoT, and advanced materials are transforming production and quality control.
Whether you are an OEM evaluating potential suppliers or a manufacturer looking for a reliable partner to support your miniaturization goals, this guide offers a comprehensive look at the strategies, technologies, and trends shaping the next generation of miniaturized medical device development.
Miniaturization shaping the future of medical devices: key trends from ECG to Nanotechnology
Miniaturization in the MedTech industry has fueled technological advancements, reshaping modern medicine and patient care. From the first ECG machines to today’s AI-powered wearables, MedTech miniaturization has evolved in four major phases:
1940s-1970s
- Integrated circuits and transistors replaced large vacuum tube-based components,
- ECG machines became more refined,
- New materials were developed (e.g. early synthetic polymers) enabling more compact medical tools,
- The first implantable devices (e.g. pacemaker) and disposable tools were born,
- Medical imaging, automated diagnostics and biocompatible materials were invented.
1970s-1990s
- DSP (Digital Signal Processing) enabled device intelligence,
- Smart and functional materials were invented, such as:
- Shape-memory alloys (e.g. Nitinol) for self-expanding stents and orthopedic implants,
- Hydroxyapatite coatings for bone integration in implants,
- Implantable devices were introduced, such as insulin pumps, cochlear implants, and programmable pacemakers.
2000s–2010s
- MEMS (MicroElectroMechanical Systems) -tiny integrated systems that combine mechanical elements and electronics on a single microchip- generated a wave of miniaturization innovations (e.g. implantable glucose sensors),
- Wireless communication technologies enabled remote connectivity,
- Nanotechnology found promising applications in diagnostics, monitoring, and treatment. Examples include nanosensors in orthopedic implants and theranostic-based devices,
- Other materials such as conductive polymers and bioresorbable metals, represented a major breakthrough in implant technology,
- 3D-printing also revolutionized the industry by its use in producing custom orthopedic implants, reconstructions, dental, and surgical instruments.
Now
- AI and Machine Learning (ML) are contributing to increasing the intelligence-to-size ratio of medical devices,
- AI-powered devices offer predictive, real-time and personalized healthcare,
- The latest incorporation of 5G connectivity and Internet of Things (IoT) is actively transforming remote patient monitoring and healthcare delivery.
From critical care to surgery to monitoring, the increasing trend toward miniaturization in medical devices offers several advantages, including improved patient comfort, portability, and minimally invasive procedures. These developments come with their challenges.
Manufacturing Today’s Medical Devices: Challenges for OEMs and CMOs
Miniaturization shaping the future of medical devices has created new challenges for OEMs and Contract Manufacturing Organizations (CMOs). To remain competitive, CMOs must meet increasingly high standards and invest in advanced micro manufacturing capabilities. These are essential for producing smaller, more sophisticated, and functionally complex components with extreme precision and ultra-tight tolerances.
Common manufacturing challenges medical that CMOs face include:
- Precision tooling and micro-scale assembly,
- Longer cycle times and specialized fixturing,
- Material constraints related to strength, biocompatibility, and microstructural stability,
- Difficulty inspecting ultra-small parts, requiring non-contact metrology and laser-based quality control systems,
- Stringent regulatory environment, including ISO 13485, FDA, and MDR compliance which make documentation accuracy, and process traceability non-negotiable.
This is why OEMs should seek contract partners who deliver cost-effective and high-speed production. CMOs should also be able to offer deep expertise in materials science, micro manufacturing, quality assurance, and regulatory compliance.
Key selection criteria that OEMs should consider when selecting CMOs include:
- The use of high-quality materials,
- Advanced machinery,
- The ability to produce customized components,
- Strong risk management and quality control systems.
Advanced Miniaturization Techniques for Complex Medical Components
New methods have been developed and continue to evolve to maintain competitiveness. Key advancements included the integration of laser-based capabilities into traditional machining techniques, the adoption of micro manufacturing methods, new inspection methods and the incorporation of AI and automation.
Below is an overview of the most effective techniques used by industry leaders to manufacture miniaturized medical components.
Micro molding
Micro molding produces complex micro components in high volumes through the shaping process of thermoplastic materials. The method supports stringent dimensional tolerance requirements, often within 0.01 inches and sometimes as tight as 0.001 inches.
UV LIGA molding process
The UV LIGA process is inspired by microelectronic technologies, combining photolithography and electroforming to manufacture micro components with complex geometries. The method has the advantage of being low-cost and rapidly implemented, allowing for rapid prototyping and strong micrometric accuracy.
Micro milling
Micro milling allows the fabrication of complex and microscale 3D geometries in challenging materials such as hardened steels, with form and dimensional tolerances generally below 1 micron. The process operates at spindle speeds exceeding 50,000 rpm. It offers an enhanced surface finish quality while remaining efficient, making it particularly valuable in mold-making high-aspect-ratio microstructures.
Micro machining / CNC micro machining
Micro machining, CNC micro machining, and multi-axis CNC systems are manufacturing processes that produce micro components with dimensions in the range of 1–500 µm. These processes contribute to metal part miniaturization, down to tens of microns, achieving tight tolerances and intricate geometries.
Hybrid machining
Hybrid machining includes laser cutting, laser welding, and CNC machining. It enables reduced prototyping duration, scrap times, and increased process capability. These machines can also include live tool stations that can produce complex and intricate features.
Laser micro machining
Laser micro machining aims to remove material at a microscopic scale through localized heating by a laser beam. The process offers very high-precision features in cutting, drilling, and marking for ultra-fine features and grinding for orthopedic and surgical instruments.
Micro-AM
Micro Additive Manufacturing (Micro-AM) is a 3D micro printing method that allows the production (printing) of parts measured in single-digit microns and up to nanometers, with complex geometries that are not possible with subtractive methods.
Micro-EDM
Micro-Electro-Discharge Machining (Micro-EDM) is a non-contact manufacturing process that enables the production of micro parts in the range of 50 μm -100 μm using thermoelectric energy generated between a tool electrode and the workpiece. Micro-EDM removes unnecessary material using localized melting and vaporization caused by pulsed electrical discharges within a narrow gap. This method is effective for conductive materials in applications like implants and surgical tools.
Materials innovation
New materials are developed to address the features of micro medical device components. Common innovative materials include Nitinol and nanomaterials such as Hydroxyapatite and Titanium materials on a nanoscale. Approved medical devices utilizing nanomaterials and nanotechnology focus on antimicrobial dressings, orthopedic and dental fillings, and implants, including those used in orthopedic, neurological, and cardiovascular treatments.

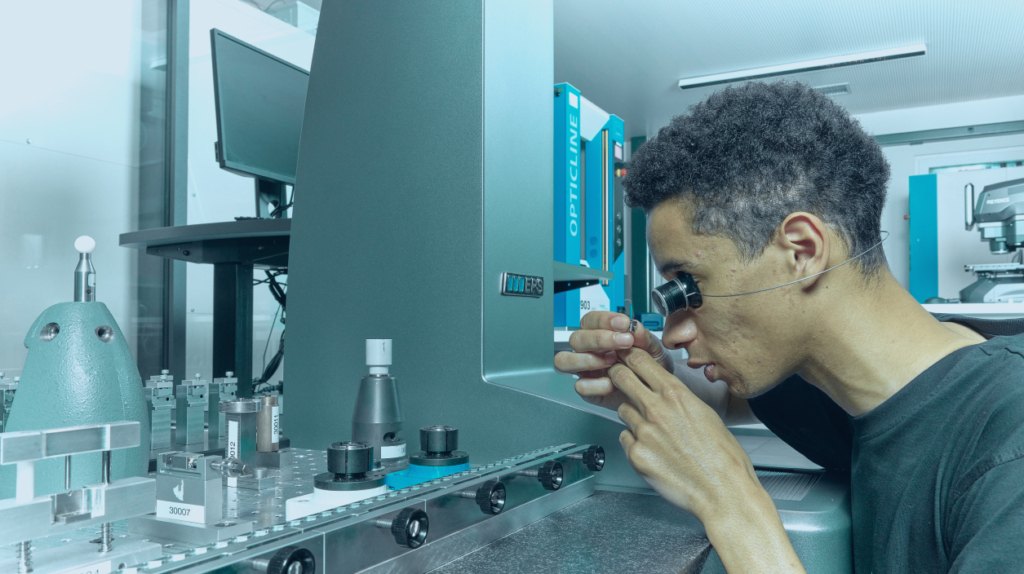

Advanced metrology techniques
Advanced metrology techniques are used for advanced quality control and verification processes.
For example, non-contact white light interferometry measures and inspects surfaces.
The focus-variation technique is another technique that can generate color 3D models for comparison against CAD models and other data analysis.
In addition, scanning electron microscopy produces high-resolution images and detailed surface information of samples using a focused beam of electrons. The resolution of instruments can range from < 1 nanometer up to several nanometers.
Advanced inspection technology machines
Advanced inspection technology machines include the automated Coordinate Measuring Machines (CMMs) used to execute process inspections and write first-article reports. In addition, digital multimeters were designed to scan thousands of data points on a complex curved surface, making it ideal for complex geometries.
AI and IoT
AI and IoT integration have revolutionized quality control in manufacturing medical device components.
On one hand, IoT integration has enabled interconnected sensors and actuators to collect real-time comprehensive data from production processes. For example, IoT sensors can monitor precision CNC machining in the following aspects: machine vibrations, tool wear, temperature fluctuations, and material flow rates.
On the other hand, AI algorithms predict maintenance needs, optimize machining parameters in real time, detect quality issues with sub-micron accuracy, and adjust production schedules for maximum efficiency.
The Future of Miniaturization in MedTech
Miniaturization is projected to remain a key trend in the MedTech industry, continually driving innovations in the machining of medical device components.
Major advances include:
- Quantum computing, and femtosecond lasers,
- New cutting tools with better coatings, base materials, and geometries,
- Laser machining gaining popularity due to its high-precision features,
- Hybrid machining, gradually replacing traditional CNC methods,
- Localized feature processing, burr-free machining via locally variable electrochemical removal, and surface-modulated laser cleaning,
- Other emerging technologies such as micro-precision half-micron processing, surface stress-free machining, deep-hole processing, and processing of pre-coated surfaces,
- IoT integration for enhanced system traceability, quality control, and maintenance.
As miniaturization continues to redefine the MedTech landscape, embracing innovation is key to remaining competitive in product design and at every manufacturing stage, including quality control. Manufacturers must adopt advanced technologies to meet the demands of precision, compliance, and scalability.
Conclusion: The importance of Strategic Partnerships
Miniaturization is shaping the future of medical devices: they are becoming increasingly intelligent, and intricate, continuously requiring smaller and more precise components. These evolutions set new challenges for OEMs to partner with contract manufacturers that offer expertise in micro engineering, micromechanics, material innovation, and regulatory compliance.
In this context, Acrotec Medtech emerges as a strategic partner, offering cutting-edge manufacturing capabilities that bridge engineering precision with biomedical innovation.
With its dedicated R&D center, Acrotech Medtech enhances efficiencies across manufacturing processes and throughout the entire value chain in medical device development. It also implements environmentally friendly, regulatory-compliant and socially responsible practices across its operations.
Through its specialized companies, Acrotec Medtech offers its long-lasting expertise in ultra-fine machining and miniaturization to develop next-generation medical devices. These devices are simpler, less invasive, and more efficient, contributing to global advances in patient care.
Whether you’re developing the next generation of implantable devices or refining complex surgical tools, contact us to discover how our contract manufacturing expertise can support your innovation from prototype to production.
